Forge
A GPS module that doesn’t need GPS.
Forge keeps drones on course when satellite navigation is jammed or spoofed. It replaces your GPS module with four wires and works with ArduPilot and PX4.
HOW IT WORKS
From pixels to position in four steps.

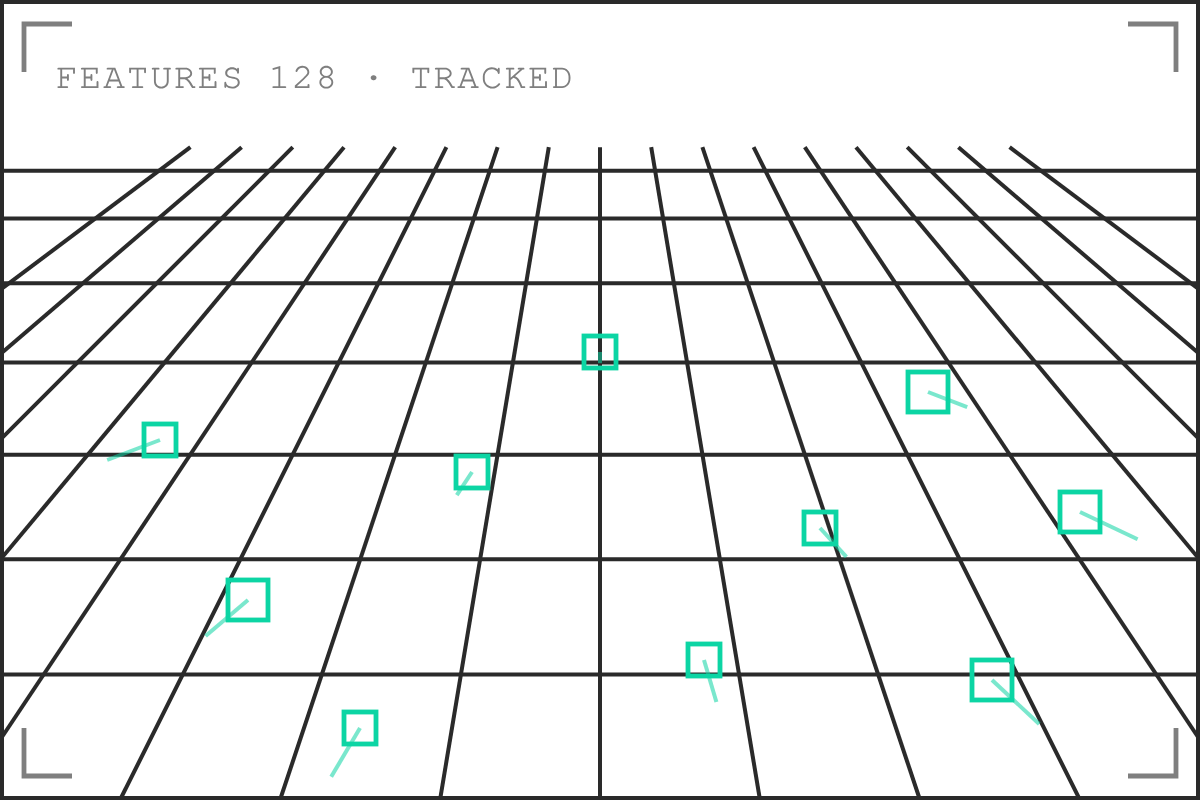

01 SEE
Camera
A near-infrared camera tracks features on the ground below.

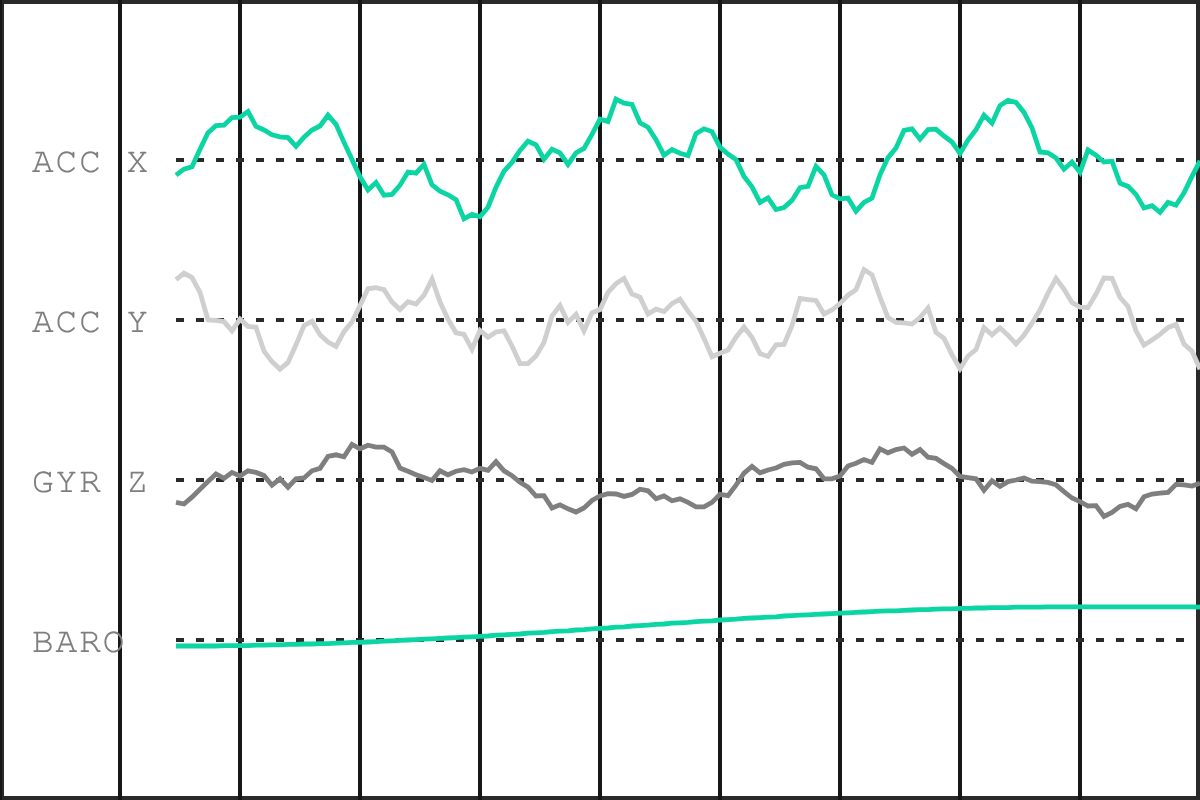

02 SENSE
Motion sensors
Inertial sensor, barometer and magnetometer measure every movement.

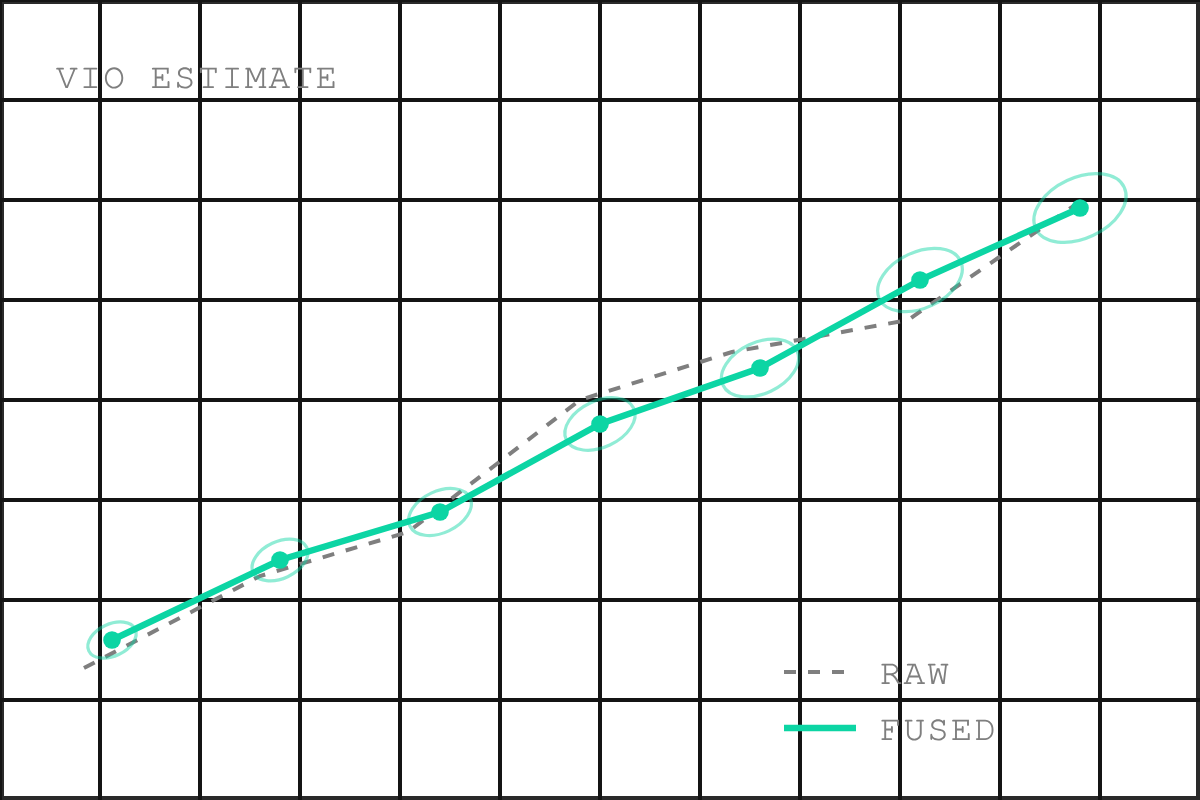

03 SOLVE
Visual-inertial odometry fuses both into one position estimate.
Onboard AI

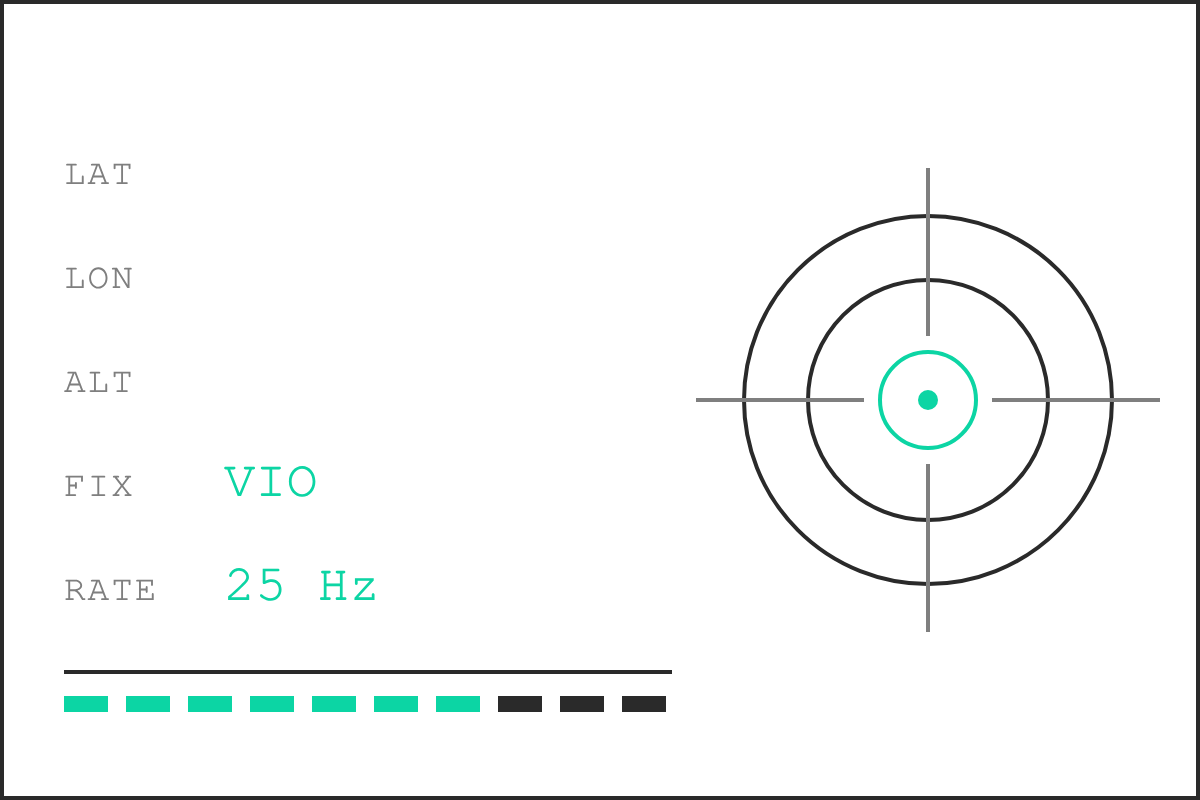

04 OUTPUT
GPS-format position
Coordinates go to the flight controller, just like a GPS module.
INTEGRATION
Pre-calibrated. Plug in and fly.
Each unit is calibrated by our own engineers before delivery, so it arrives ready to install. Swap your GPS module for Forge, set a few parameters from our integration guide, and fly. We support early integrations directly.

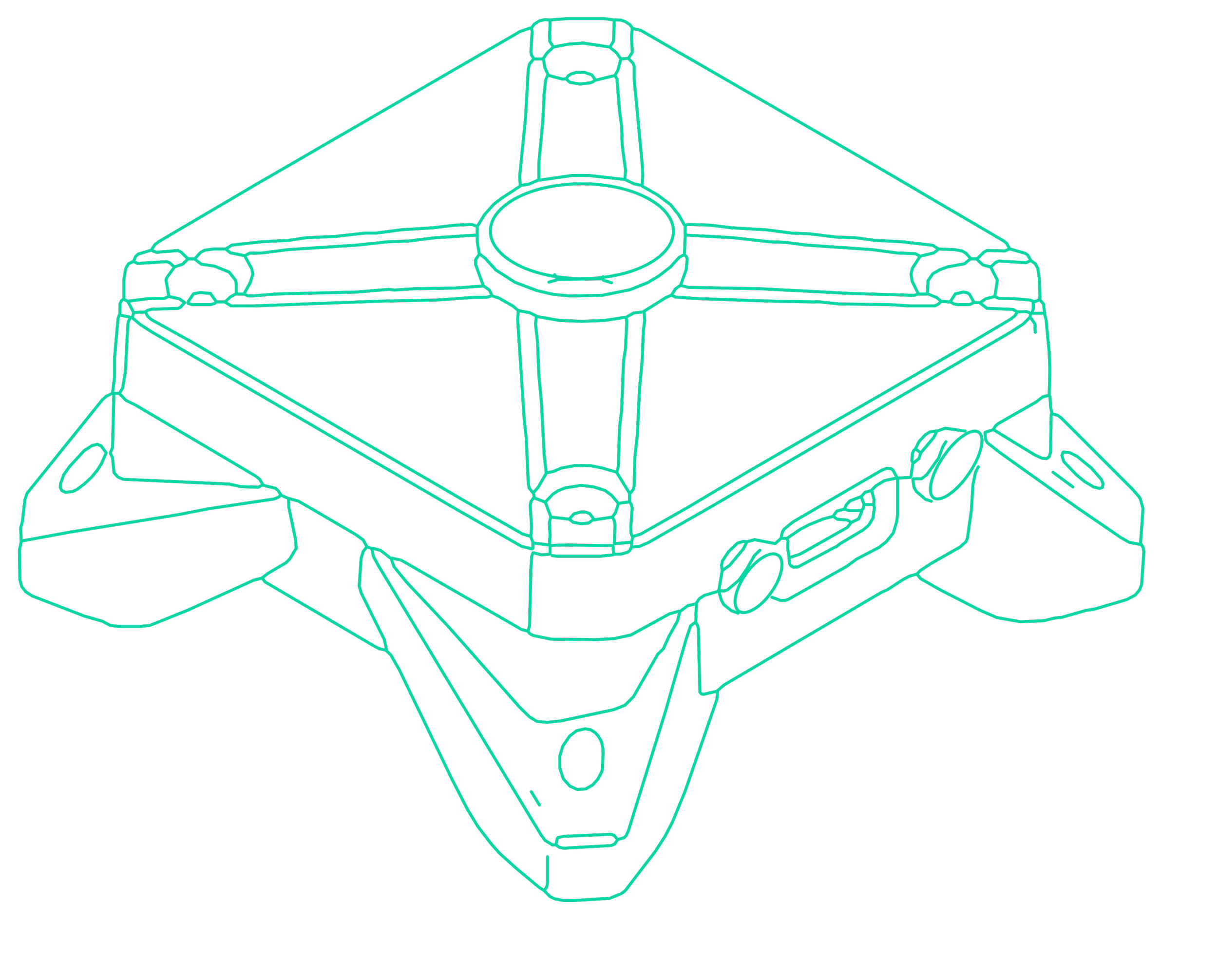

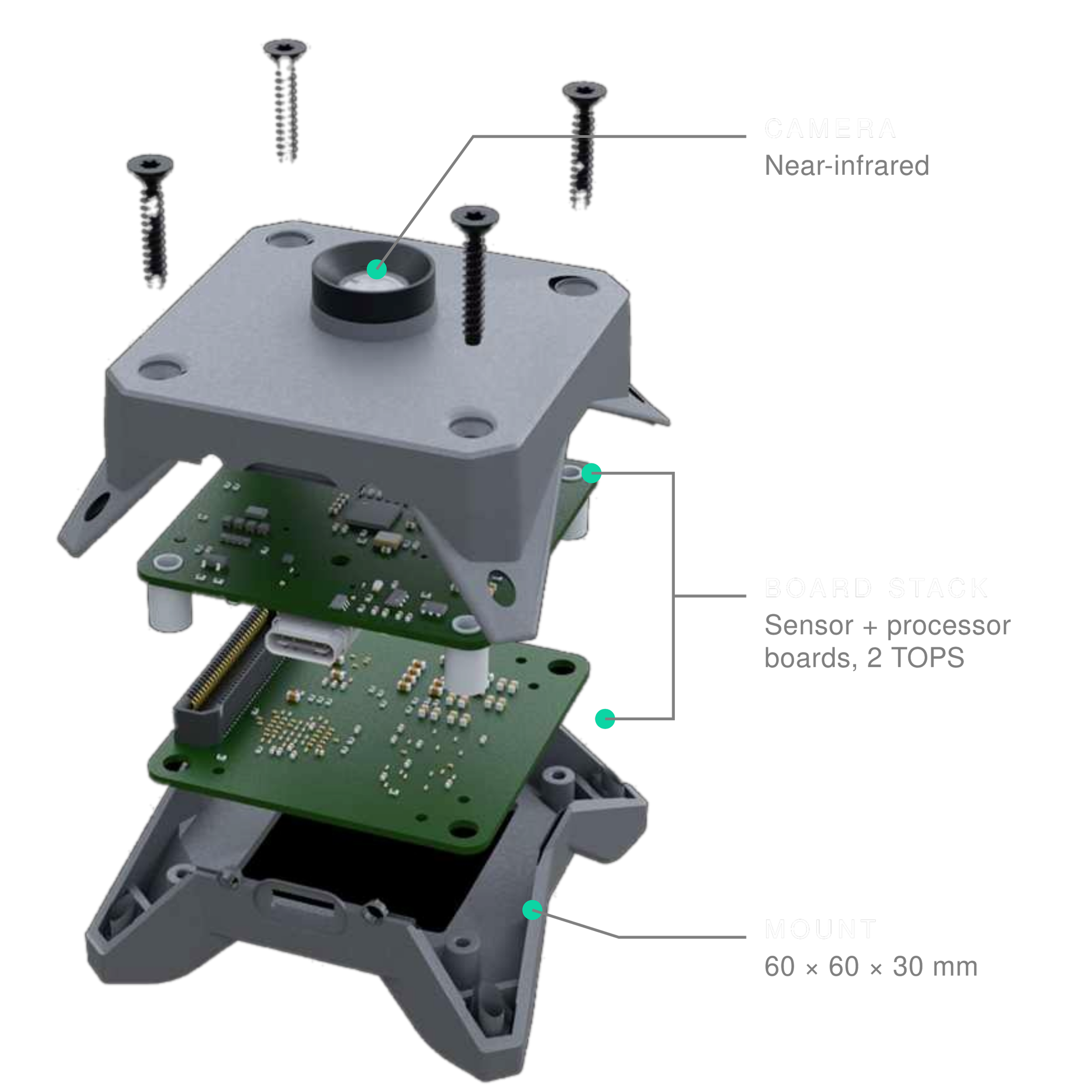

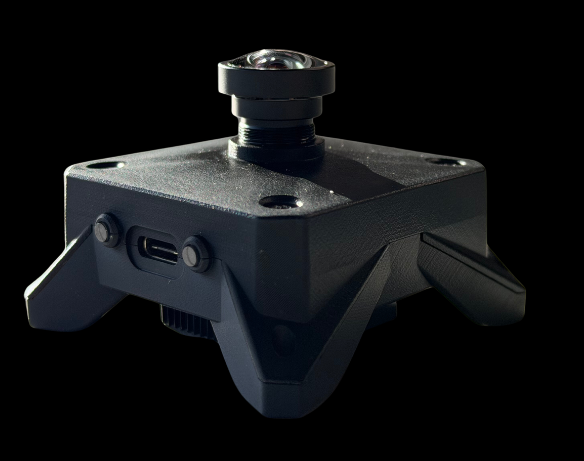

FORGE · INSIDE THE MODULE
Under the hood.
60 × 60 × 30 mm · 40 g · 5 W

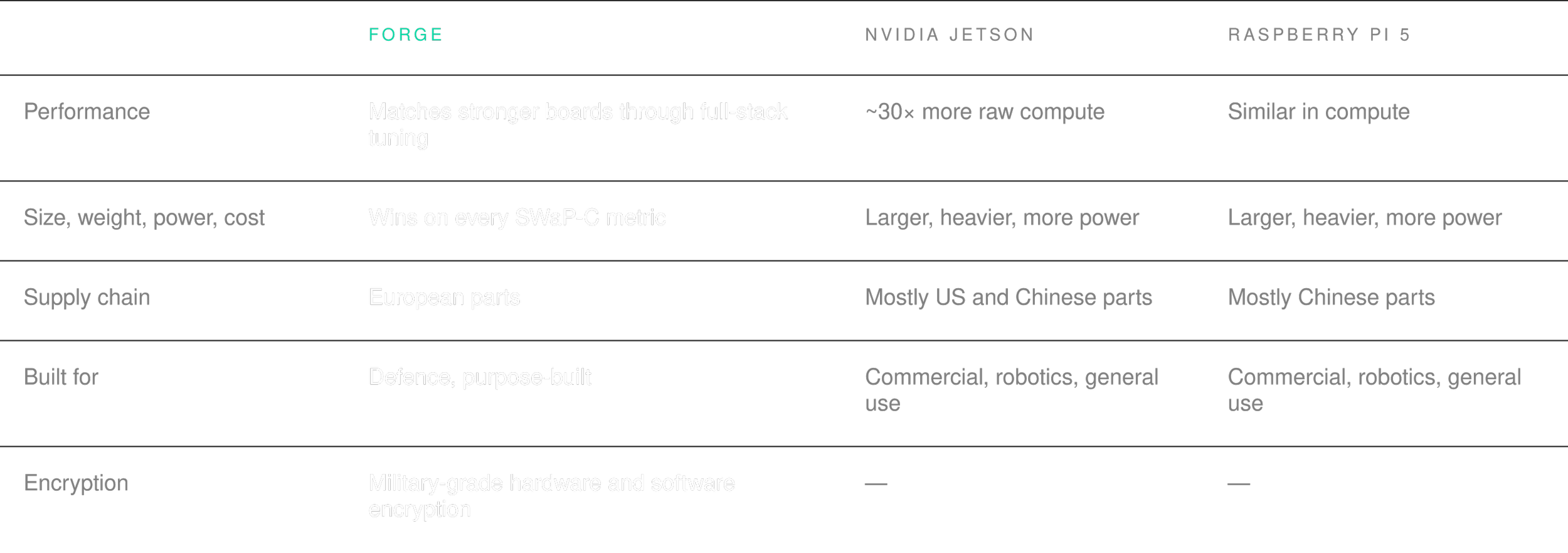

HOW FORGE COMPARES
No Nvidia. No Raspberry Pi. Built for defence.

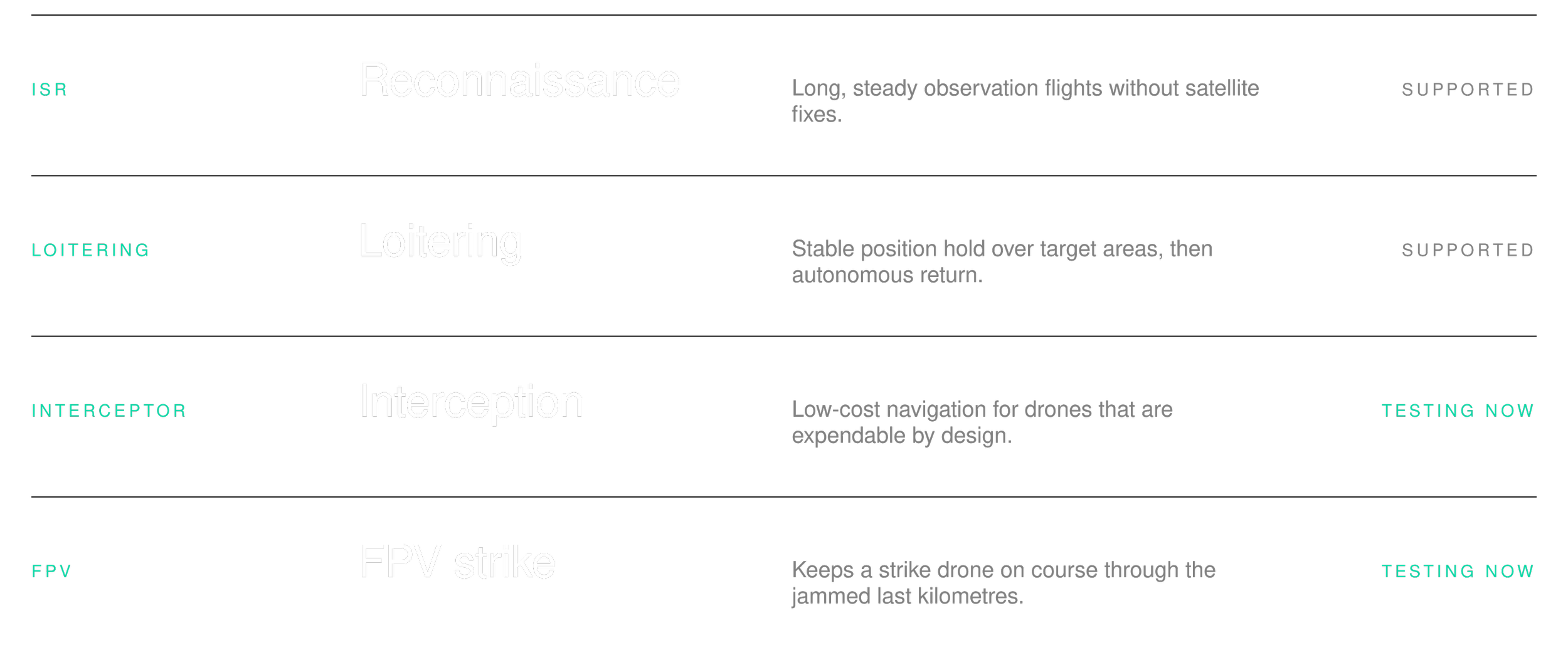

MISSION PROFILES
Made for drones that can’t afford to get lost.

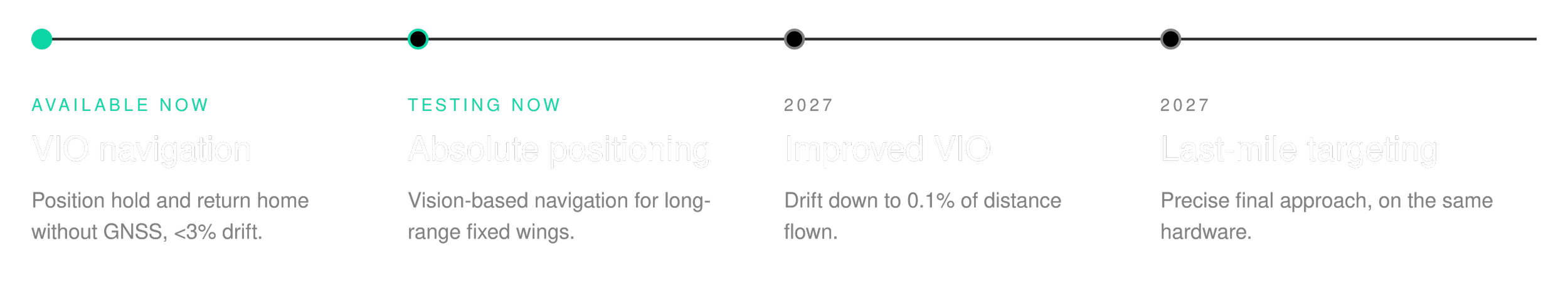

ROADMAP
Future capabilities. Same hardware.

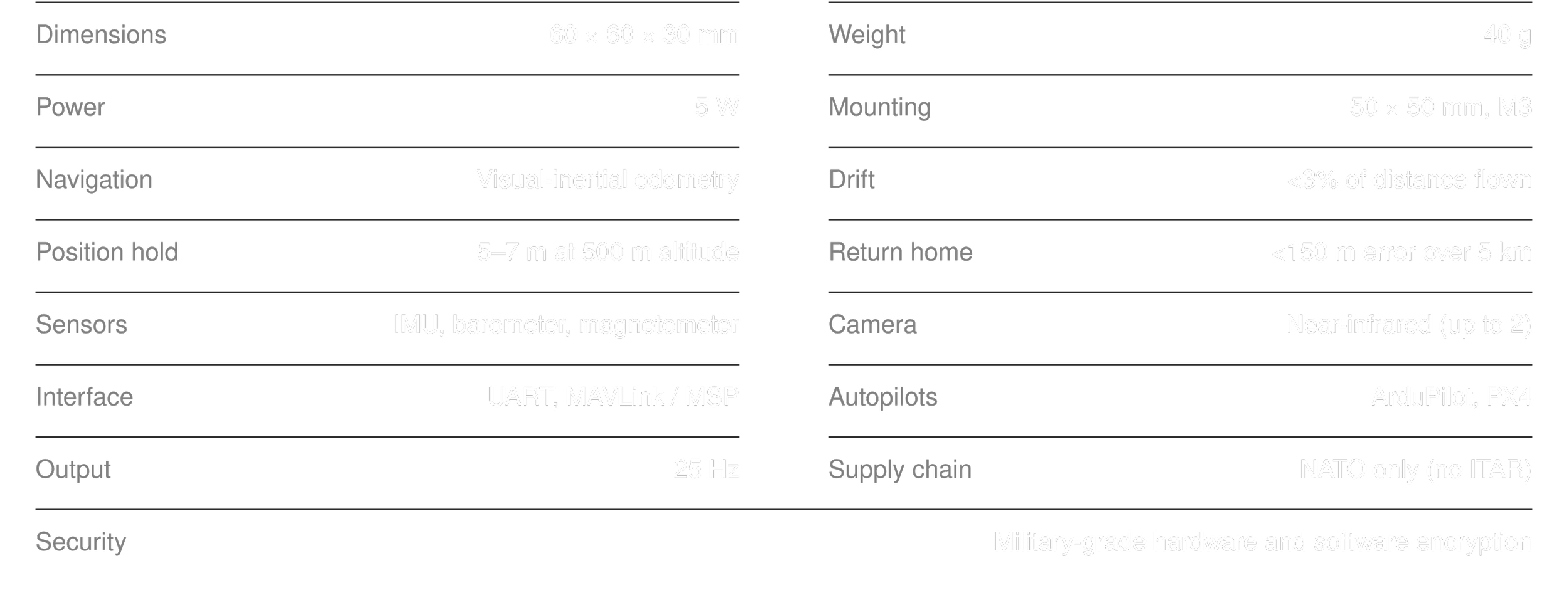

TECHNICAL SPECIFICATIONS
The details.
